Intent parsing
Produces scenario type, risk semantics, key agents, geometric relations, and severity.
01 · Abstract
Rare hazards need explicit control
Real-world driving logs undersample the interactions that matter most for safety. NLG-Gen converts language into executable spatial and kinematic constraints, writes the requested hazard into a structured scenario, and uses diffusion as a local realism restorer under semantic protection.
TL;DR. Explicit semantic editing establishes the long-tail hazard; mask-guided low-noise diffusion repairs the scene without erasing it; candidate filtering returns simulator-ready scenarios that challenge multiple planners.
02 · Method
Control first, restore second
The pipeline separates semantic correctness from generative realism instead of asking one soft conditioning signal to solve both.

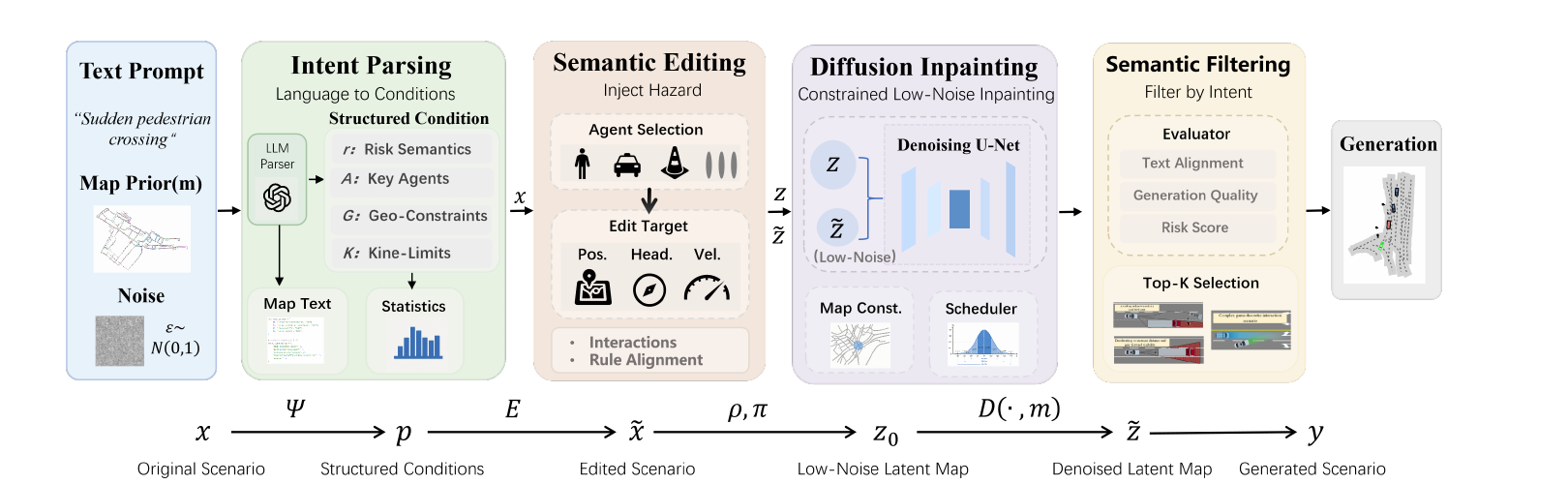

Natural-language intent parsing, vector-space hazard injection, constraint-preserving diffusion inpainting, and semantic candidate selection.
Semantic editing
Injects explicit pedestrian-crossing, hard-brake, or cut-in conflicts in vector space.
Protected inpainting
Uses differential and semantic ROI masks with low-noise latent restoration.
Candidate filtering
Ranks candidates by semantic alignment, compliance, and preservation fidelity.
03 · Results
Controllable across hazards and severity
100%Compliance across all three hazard types
92.66Pedestrian-crossing MPA
94.42Aggressive-severity MPA
91.12%Repaint success rate
| Scenario | MPA ↑ | CR ↑ | SQS ↑ | DRL ↑ |
|---|---|---|---|---|
| Pedestrian crossing | 92.66 | 100 | 75.51 | 35.98 m |
| Hard braking | 86.93 | 100 | 73.64 | 40.09 m |
| Forced cut-in | 83.48 | 100 | 75.57 | 43.57 m |
04 · Analysis
Generated scenarios expose planner weaknesses
All three closed-loop planners degrade sharply on the generated set relative to the official nuPlan validation split.
| Planner | nuPlan score ↑ | NLG-Gen score ↑ | Collision-free ↑ | TTC ↑ |
|---|---|---|---|---|
| PDM-Closed | 97.61 | 27.86 | 88.75 | 76.50 |
| Diffusion Planner | 95.70 | 18.59 | 69.78 | 63.45 |
| Flow Planner | 97.13 | 10.05 | 58.81 | 51.86 |
What each stage contributes
- Semantic editing raises MPA from 29.04 to 89.49.
- Diffusion inpainting further raises MPA to 91.65 and interaction strength to 69.91.
- The 41.03 CTC after repainting reveals the current realism-control trade-off.
Evaluation scope
- Three hazard types and three severity levels.
- nuPlan vector scenarios in a 64 m × 64 m ego-centric field.
- Closed-loop tests with PDM-Closed, Diffusion Planner, and Flow Planner.
05 · Citation
Cite NLG-Gen
@article{lei2026nlggen,
title = {NLG-Gen: Natural Language-Guided Generation of Long-Tail Critical Scenarios for Autonomous Driving},
author = {Lei, Tingting and Zhu, Yifan and Zhang, Runxi and Hu, Feng and Yu, Hong and Wang, Ye},
year = {2026}
}
